Atlantis Icon R1 Regulator
Atlantis
$329.00
Write a Review
Atlantis

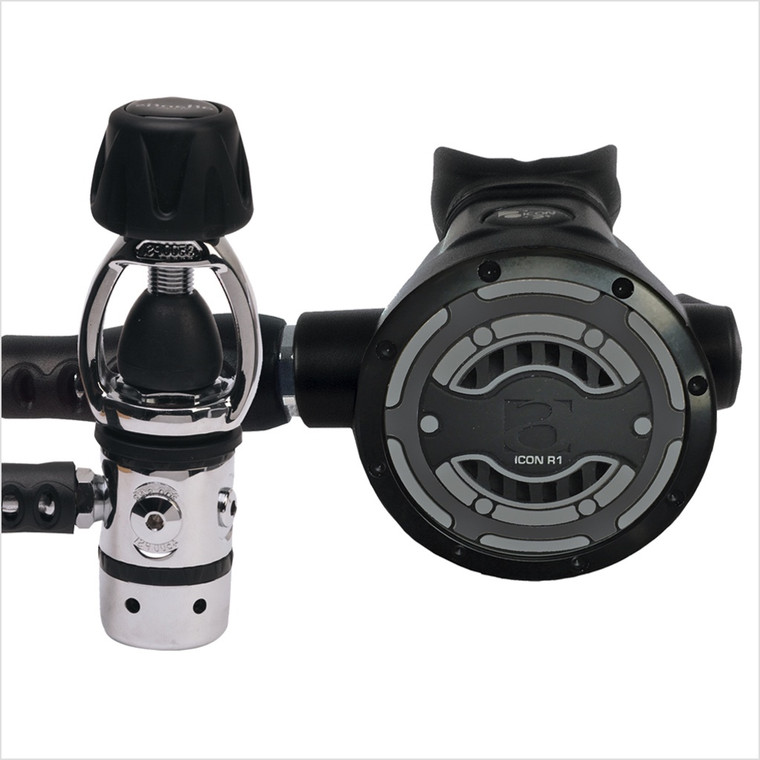

Atlantis Icon R1 Regulator
Proven design - proven as a tough and reliable hire/resort regulator which is ideal for the recreational diver.
1st Stage:
- Unbalanced piston 135-145 PSI output.
- Maximum working pressure 3500 PSI (232 bar)
- Four 3/8-24 UNF-2B intermediate pressure ports.
- two 7/16-20 UNF-2B high pressure ports.
- Chromium plated brass body.
- Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
- Available in Yoke or DIN.

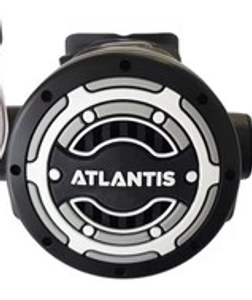

2nd Stage:
- Non-Adjustable 2nd stage.
- Downstream demand valve with external air intake adjustment.
- Marine grade 303 stainless steel parts. Internal working parts are also passivated treated for extra protection and durability.
- 150 PSI maximum intermediate pressure.
- 1.2 to 1.4 CIW (column inches of water) inhalation effort.
- 1.1 CIW (column inches of water) exhalation effort.
- 30+SCGM (air supply:3,000 PSI).
